Tapered roller bearing Timken 594/592B, Outer diameter: 152.4 mm | Inner diameter: 95.25 mm | Width: 15.875 mm

Tapered Roller Bearing

See technical informationSee documents

References

Timken:594/592B
Rubix:101A1708
EAN:0013992330062
brand logo
brand logo
brand logo
brand logo

Technical specifications

Inner diameter95.25 mm
Outer diameter152.4 mm
Width15.875 mm
See all Specifications

Documents

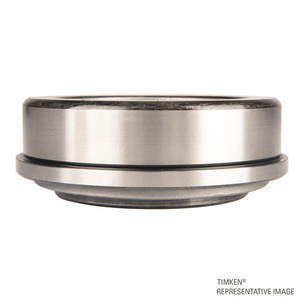

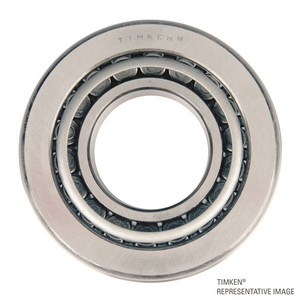

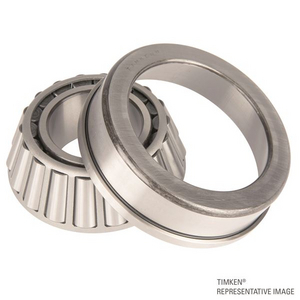

Product details : TIMKEN 594-99402 TAPERED ROLLER BEARING WITH FLANGE

Like the TS bearing design, the TSF design consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft. TSF bearings have flanged cups to facilitate axial location and accurately align seals in through-bored housings.

Technical specifications

Attributes
Inner diameter95.25 mm
Outer diameter152.4 mm
Width15.875 mm
Bearing Clearancecn
Weight2.6 kg
Series595
Cagesteel
Total bearing width15.875 mm
Basic static load, radial - C0r319000 N
Basic dynamic load, radial - Cr216000 N
£ 300.50 excl. VAT
/ Each
£ 360.60 incl. VAT
  • Usually arrives within 14 working days
