Tapered roller bearing Timken HM 926749/HM926710, Outer diameter: 228.6 mm | Inner diameter: 127.792 mm | Width: 53.975 mm

Tapered Roller Bearing

See technical informationSee documents

References

Timken:HM 926749/HM926710
Rubix:104A8378
EAN:0053893782591
brand logo

Technical specifications

Inner diameter127.792 mm
Outer diameter228.6 mm
Width53.975 mm
See all Specifications

Documents

Product details : TIMKEN HM926749-99401 TAPERED ROLLER BEARING

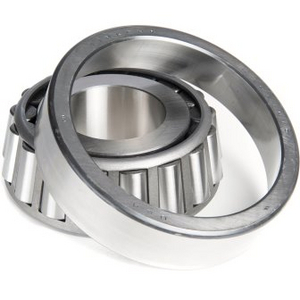

This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft.

Technical specifications

Attributes
Inner diameter127.792 mm
Outer diameter228.6 mm
Width53.975 mm
Bearing Clearancecn
Weight8.5 kg
Serieshm926700
Materialstamped steel (cage)
Cagesteel
Total bearing width53.975 mm
StandardANSI/ABMA 19.2-2013
Basic static load, radial - C0r673000 N
Basic dynamic load, radial - Cr586000 N
£ 1,826.80 excl. VAT
/ Each
£ 2,192.16 incl. VAT
  • Delivery usually within ( 7 ) days
