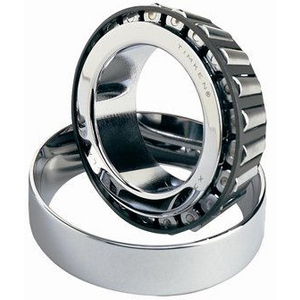

TIMKEN HM903249-99401 TAPERED ROLLER BEARING

Tapered roller bearing Timken HM903249/HM903210, Outer diameter: 95.25 mm | Inner diameter: 44.45 mm | Width: 30.958 mm

Tapered Roller Bearings

See technical information
References
Timken:HM903249/HM903210
Rubix:105A5168
Manufacturer :100147290
EAN:0053893663418
Tapered Roller Bearing - HM903249-99401
Tapered Roller Bearing - HM903249-99401
Tapered Roller Bearing - HM903249-99401
Technical specifications
Inner diameter44.45 mm
Outer diameter95.25 mm
Width30.958 mm
See all Specifications

Product details : TIMKEN HM903249-99401 TAPERED ROLLER BEARING

Timken is the recognized world leader in tapered roller bearings with the most extensive offering in the market. This is the basic and the most widely used type of tapered roller bearing. It consists of the inner-ring assembly and the outer ring. It is usually fitted as one of an opposing pair. During equipment assembly, single-row bearings can be “set” to the required clearance (endplay) or preload condition to optimize performance.

Strengths

Single-row tapered roller bearings have positive roller alignment that ensures true rolling motion and generates a “seating force” that pushes the roller against the cone large rib. This seating force prevents the rollers from skewing off apex, thereby keeping them positively aligned and located against the cone large rib.

Applications

Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels

Technical specifications

Attributes
Logistics dimensions (L x W x H)104x104x35 mm
Logistic Weight1000 g
Packaged dimensions (D x W x H)104x104x35 mm
Package weight1000 g
Inner diameter44.45 mm
Outer diameter95.25 mm
Width30.958 mm
Bearing Clearancecn
Weight0.998 kg
Serieshm903200
Materiallow-alloy carbon-chromium bearing steel (52100-type) per astm a295
Cagesteel
Total bearing width30.958 mm
Standardabma inch part-numbering system
Basic static load, radial - C0r132000 N
Basic dynamic load, radial - Cr136000 N
Show UNSPSC/ECL@SS
£ 99.03 excl. VAT
/ Each
£ 118.84 incl. VAT
  • Delivery usually within ( 7 ) days
