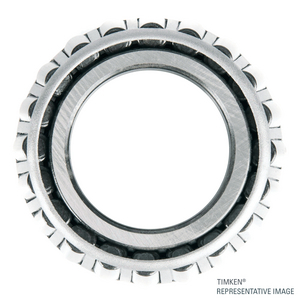

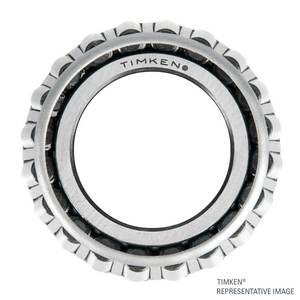

Tapered roller bearing Timken 688TD, Outer diameter: 168.28 mm | Inner diameter: 100.211 mm | Width: 95.25 mm
Timken Tapered Roller Bearing 675
References
timken:688TD
rubix:132A2775
manufacturer :100055028
ean:0053893079912
Technical specifications
| Inner diameter | 100.211 mm |
|---|---|
| Outer diameter | 168.28 mm |
| Width | 95.25 mm |

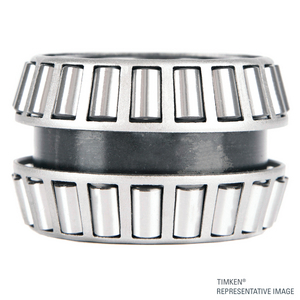

Product details : TIMKEN 688TD-20000 TAPERED ROLLER BEARING DOUBLE CONE
TDI bearings have a one-piece double inner race and two single outer races and are typically supplied complete with an outer race spacer as a pre-set assembly. The bearing can be used at fixed positions on rotation shaft applications. For rotating housing application it can be used to float on the stationary shaft.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
Strengths
Double cone and two single cups, with or without a cup spacer. Furnished as a matched assembly. Cups ground to fit
Applications
Gear reduction units; Calendar rolls; Industrial machinery
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 95,25x132,588x132,588 mm |
|---|---|
| Logistic Weight | 5382 g |
| Packaged dimensions (D x W x H) | 107,95x149,352x149,352 mm |
| Package weight | 5381,9 g |
| Inner diameter | 100.211 mm |
| Outer diameter | 168.28 mm |
| Width | 95.25 mm |
| Bearing Clearance | CN |
| Series | 675 |
| Material | Steel |
| Cage | Steel |
Show UNSPSC/ECL@SS
£ 723.38 excl. VAT
/ Each
£ 868.06 incl. VAT
Usually arrives within 14 working days
