Precision / Spindle bearing FAG HCS71909-C-T-P4S-UL, Inner diameter: 45 mm | Outer diameter: 68 mm | Width: 12 mm

Angular contact ball bearing

See technical information

References

FAG:HCS71909-C-T-P4S-UL
Rubix:238A1692
Manufacturer :0384663250000
EAN:4012801733830
brand logo

Technical specifications

Inner diameter45 mm
Outer diameter68 mm
Width12 mm
See all Specifications

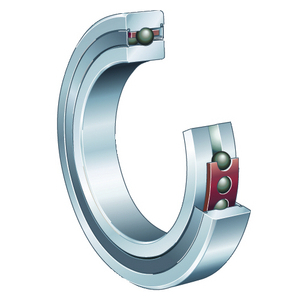

Product details : FAG HCS71909-C-T-P4S-UL HIGH SPEED SPINDLE BEARING

Spindle bearings HCS719..-E, adjusted, in pairs or sets, contact angle α = 25°, with ceramic balls, lip seals on both sides, non-contact, restricted tolerances

Technical specifications

Attributes
Inner diameter45 mm
Outer diameter68 mm
Width12 mm
Sealingtwo rubber seals
Serieshcs719..-c-t-p4s
Materialstandard bearing steel (rings); rolling elements: si3n4 (silicon nitride) ceramic balls
Cagephenolic resin
Weight0.135 kg
Precisionp4s (super precision: iso class 4 dimensional / iso class 2 running)
Basic static load, radial - C0r4200 N
Basic dynamic load, radial - Cr9600 N
£ 318.66 excl. VAT
/ Each
£ 382.39 incl. VAT
  • Delivery usually within ( 7 ) days
