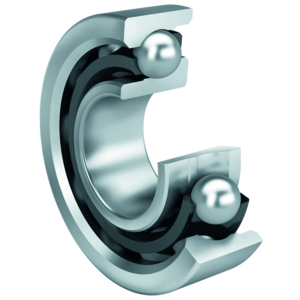

Angular contact ball bearing FAG 7204-B-XL-TVP-UB, Outer diameter: 47 mm | Inner diameter: 20 mm | Width: 14 mm

Angular contact ball bearing

See technical information

References

FAG:7204-B-XL-TVP-UB
Rubix:274A7069
Manufacturer :0882816980000
EAN:4054372612329
brand logo

Technical specifications

Inner diameter20 mm
Outer diameter47 mm
Width14 mm
See all Specifications

Product details : FAG 7204-B-XL-TVP-UB ANGULAR CONTACT BALL BEARING

Angular contact ball bearing 72..-B-XL-TVP, single row, X-life, plastic cage
Angular contact ball bearing 72..-B-XL-TVP, single row, X-life, plastic cage

Technical specifications

Attributes
Inner diameter20 mm
Outer diameter47 mm
Width14 mm
Sealingopen
Series72..-b-xl-tvp-ub
Cagepolyamide
Weight0.103 kg
Reference speed15400 rpm
Limit speed21600 rpm
Angle40 °
Basic static load, radial - C0r7800 N
Basic dynamic load, radial - Cr14900 N
£ 21.87 excl. VAT
/ Each
£ 26.24 incl. VAT
  • Delivery usually within ( 7 ) days
