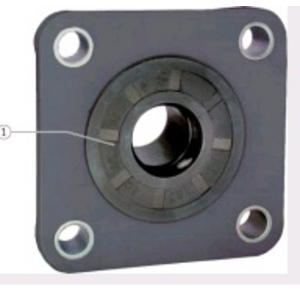

Insert bearing with set screw INA GYE40-KRR-B-VA-HLA, Outer diameter: 80 mm | Inner diameter: 40 mm | Width: 49.2 mm
Bearing GYE
References
ina:GYE40-KRR-B-VA-HLA
rubix:104A0603
manufacturer :0510627980000
ean:4047643203098
Technical specifications
| Inner diameter | 40 mm |
|---|---|
| Outer diameter | 80 mm |
| Width | 49.2 mm |
Product details : INA SS BEARING INSERT -T-GYE40-KRR-B-VA-HLC
Radial insert ball bearin
Radial insert ball bearing GYE..-KRR-B-VA
Applications
Suitable for bearings rotating in one direction, but also for rotation in both directions under reduced speed and under low load.
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 49x80x80 mm |
|---|---|
| Logistic Weight | 609 g |
| Inner diameter | 40 mm |
| Outer diameter | 80 mm |
| Width | 49.2 mm |
| Bearing Clearance | CN |
| Series | GYE..-KRR-B-VA |
| Basic static load, radial - C0r | 18900 N |
| Basic dynamic load, radial - Cr | 31500 N |
| Sealing | Two rubber seals |
Show UNSPSC/ECL@SS
Usually arrives within 14 working days
