GUHRING 00534 030.000 CORE DRILLS

Design: HSS, DIN 343, type N.
Profile grinding, steam tempered surface, right cutting.

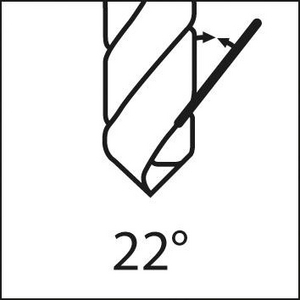

Normal angle of rake, normal core thickness and without core gradient.

Application: For drilling out pre-drilled, pre-cast or pre-punched holes. The sturdy construction and 3 blades means that alignment inaccuracies and runouts in pre-drilled holes are corrected. Furthermore, the drill wall surface is improved so that a reamer can be subsequently used for perfect final reaming. Please pay attention to the column " smallest Ø of pre-drilled hole" .

Note: The cut diameter must be smaller than the hole to be drilled out.
Further dimensions or HSS-E designs or VHM/HM assembly or long flute counter bores according to DIN 1864 available on request.

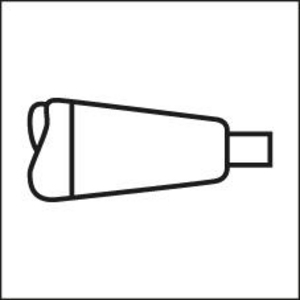

Core drill with Morse taper shank

Design: HSS, DIN 343, type N.
Profile grinding, steam tempered surface, right cutting.
Normal angle of rake, normal core thickness and without core gradient.

Application: For drilling out pre-drilled, pre-cast or pre-punched holes. The sturdy construction and 3 blades means that alignment inaccuracies and runouts in pre-drilled holes are corrected. In addition, the drill wall surface is so far improved that can then be thoroughly finished with a reamer. Please pay attention to the column "smallest Ø of pre-drilled hole".

Note: The cut diameter must be smaller than the hole to be drilled out.
Further dimensions or HSS-E versions or solid carbide/carbide components or long core drills according to DIN 1864 available on request.
