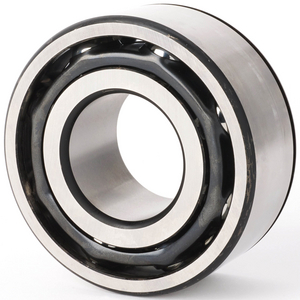

TIMKEN 5211W C1 DOUBLE ROW ANGULAR CONTACT BALL BEARING

Angular contact ball bearing Timken 5211 WC1, Outer diameter: 100 mm | Inner diameter: 55 mm | Width: 33.325 mm

Double Row Angular Contact Ball Bearing

See technical information
References
Timken:5211 WC1
Rubix:396A2926
EAN:0087796043572
brand logo
Technical specifications
Inner diameter55 mm
Outer diameter100 mm
Width33.325 mm
See all Specifications

Product details : TIMKEN 5211W C1 DOUBLE ROW ANGULAR CONTACT BALL BEARING

Technical specifications

Attributes
Inner diameter55 mm
Outer diameter100 mm
Width33.325 mm
Bearing Clearancec1
Sealingopen
Series5200
Materialsteel
Cagesteel
Weight1.039 kg
Limit speed3870 rpm
Angle30 °
Precisionabec-1
Borestraight bore
Basic static load, radial - C0r62000 N
Basic dynamic load, radial - Cr84000 N
Show UNSPSC/ECL@SS
£ 165.41 excl. VAT
/ Each
£ 198.49 incl. VAT
  • Usually arrives within 14 working days
