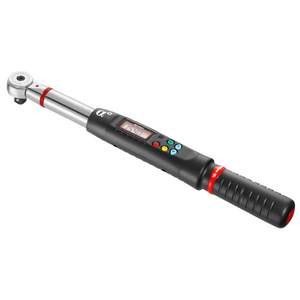

FACOM E.316A135J ELECT TORQUE + ANGLE WRENCH 135NM + RATCHET
E.316A - Electronic torque/angle wrenches with ratchet
References
facom:E.316A135J
rubix:2009767
ean:3148518534505
Technical specifications
| Tightening torque, minimum | 6.7 N.m |
|---|---|
| Tightening torque, maximum | 135 N.m |
| Square drive adapter | 3/8 '' |
Product details : FACOM E.316A135J ELECT TORQUE + ANGLE WRENCH 135NM + RATCHET
E.316A - Electronic dynanometric torque/angle wrenches with ratchet
- Accuracy:
- Torque: ± 2% between 20% and 100% of wrench capacity.
- Angle: ± 2°.
- Attachment: 9 x 12 and 14 x 18 mm.
- Measuring mode: peak or follower.
- Lockable keypad (operator only has access to program selection and results storage).
- Measurement units: N.m, lbf.ft, lbf.in, Kg.cm and deg.
- 9 presettable torque and/or angle values.
- 250-value memory with USB PC link.
- Supplied with calibration certificate.
- Supplied with ratchet in plastic case and foam tray.
Standard NF EN ISO 6789, ISO 6789, DIN EN ISO 6789.
- Accuracy:
- Torque: ± 2% between 20% and 100% of wrench capacity.
- Angle: ± 2°.
- Attachment: 9 x 12 and 14 x 18 mm.
- Measuring mode: peak or follower.
- Lockable keypad (operator only has access to program selection and results storage).
- Measurement units: N.m, lbf.ft, lbf.in, Kg.cm and deg.
- 9 presettable torque and/or angle values.
- 250-value memory with USB PC link.
- Supplied with calibration certificate.
- Supplied with ratchet in plastic case and foam tray.
Standard NF EN ISO 6789, ISO 6789, DIN EN ISO 6789.
Technical specifications
Attributes
| Logistic Weight | 1697 g |
|---|---|
| Packaged dimensions (D x W x H) | 575x115x70 mm |
| Package weight | 1886 g |
| Tightening torque, minimum | 6.7 N.m |
| Tightening torque, maximum | 135 N.m |
| Square drive adapter | 3/8 '' |
| Length | 415 mm |
| Weight | 1.697 kg |
| Number of elements | 1 |
| Fixation | 9x12 - 14x18 mm |
| Standard | iso 6789 |
Show UNSPSC/ECL@SS
£ 785.59 excl. VAT
/ Each
£ 942.71 incl. VAT
Usually arrives within 14 working days
