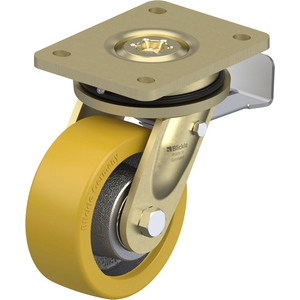

BLICKLE HD SWIVELBRAKECASTOR LS-GTH127K-ST
Heavy duty welded steel swivel castor, heavy duty swivel head, with brake system 'stop-top', with directional lock Heavy duty wheel, with Blickle Extrathane® polyurethane tread, with cast iron wheel centre
References
blickle:LS-GTH 127K-ST
rubix:156A5723
manufacturer :316984
ean:4047526316983
Technical specifications
| Load capacity | 700 kg |
|---|---|
| Wheel diameter | 125 mm |
| Wheel width | 50 mm |
Product details : BLICKLE HD SWIVELBRAKECASTOR LS-GTH127K-ST
Bracket: LS series
- particularly robust welded steel construction, zinc-plated, yellow-passivated, Cr6-free
- axial grooved ball bearing ISO 104 and tapered roller bearing ISO 355 in the swivel head
- bolted and secured welded central kingpin, extremely strong
- dust and splash-proof
- grease nipple
Wheel: GTH series
- tread: high-quality polyurethane elastomer Blickle Extrathane®, hardness 92 Shore A, colour light brown, non-marking, non-staining
- wheel centre: rugged grey cast iron, with grease nipple from wheel Ø 150 mm, lacquered, colour silver
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
Technical specifications
Attributes
| Logistic Weight | 5700 g |
|---|---|
| Load capacity | 700 kg |
| Wheel diameter | 125 mm |
| Wheel width | 50 mm |
| Wheel housing/rim material | Cast Iron |
| Running sole/tire material | Polyurethane |
| Min. temperature | -20 °C |
| Max. temperature | 70 °C |
| Total height | 170 mm |
| Type of bearing | Ball bearing |
| Running sole / tire colour | Brown |
| Shore A Hardness | 92 Shore |
| Plate width | 110 mm |
| Plate length | 140 mm |
| 170 mm | |
| 50 mm |
Show UNSPSC/ECL@SS
£ 218.33 excl. VAT
/ Each
£ 262.00 incl. VAT
Usually arrives within 14 working days
