SPARTEX TOGGLE CLAMP MH2UB
SPARTEX TOGGLE CLAMP MH2UB
Horizontal base mounted adjustable bar
References
spartex:
6477230
rubix:
130021
Technical specifications
Model
Vertical lever and adjustable pressure axis
Clamping force
0.54
kN
Length
118
mm
Technical sheet / Technical file
Product details
Technical specifications
Product details : SPARTEX TOGGLE CLAMP MH2UB
Base mounted.
Bar with adjustable spindle position.
Supplied with set screw, nuts and flanged washers.
Manufactured from zinc and passivated steel

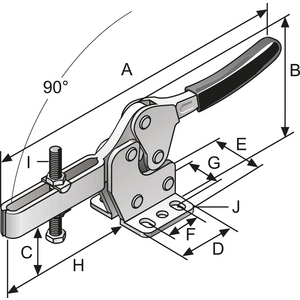

A (mm):118
B (mm):30
C (mm):20
D (mm):27
E (mm):30
F (mm):13
G (mm):19
H (mm):36
I (mm):M5x35
J (mm):5,5
Technical specifications
Attributes
Model
Vertical lever and adjustable pressure axis
Clamping force
0.54
kN
Length
118
mm
Show UNSPSC/ECL@SS
Add to my wishlist
Don’t forget to login in order to benefit from your prices
£
44.84
excl. VAT
/
Each
£
53.81
incl. VAT
Delivery within 10-15 business days
Select variants (4)
