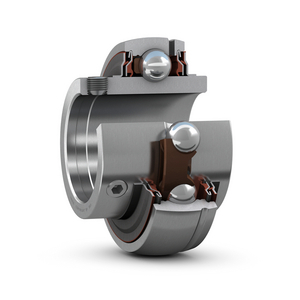

SKF YAR205-2RFG/VE495BEARING INSERT FOR FOODLINE UNIT

Insert bearing with set screw SKF YAR 205-2RFG/VE495, Outer diameter: 52 mm | Inner diameter: 25 mm | Width: 34.1 mm

Insert Bearing

See technical information
References
SKF:YAR 205-2RFG/VE495
Rubix:200A1431
Manufacturer :78091
EAN:07316571814797
brand logo
Technical specifications
Inner diameter25 mm
Outer diameter52 mm
Width34.1 mm
See all Specifications

Product details : SKF YAR205-2RFG/VE495BEARING INSERT FOR FOODLINE UNIT

Radial insert ball bearings are based on sealed deep groove ball bearings. This design is suitable for applications with constant and alternating directions of rotation. The inner ring, which is wider on both sides, is fastened to the shaft by tightening two fastening screws, making it easy to install.
Y-bearing, standard three-lip contact seal with additional slinger plate and widened inner ring on both sides of the bearing, bearing without lubrication holes in the outer ring, set-screw fastening

Strengths

  • Designed for constant and alternating rotary movements
  • Quick and easy mounting on the shaft
  • Absorption of installation-related misalignments
  • Long service life
  • Reduced noise and vibration level

Applications

Food and beverage industry

Technical specifications

Attributes
Logistic Weight197 g
Inner diameter25 mm
Outer diameter52 mm
Width34.1 mm
Sealingtwo rubber seals
Seriesyar
Materialsteel
Limit speed4300 rpm
Basic static load, radial - C0r7800 N
Basic dynamic load, radial - Cr14000 N
Show UNSPSC/ECL@SS
£ 80.88 excl. VAT
/ Each
£ 97.06 incl. VAT
  • Usually arrives within 14 working days
