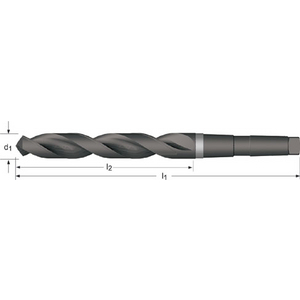

DORMER A13012.2 DRILL 12.20 MM 5969047
Metal drill bits A130
References
dormer:A13012.2
rubix:116A3876
ean:7320760022382
Technical specifications
| Drilling diameter | 12.2 mm |
|---|---|
| Total length | 182 mm |
| Length of cut | 101 mm |
Product details : DORMER A13012.2 DRILL 12.20 MM 5969047
HSS Short spiral drill bit with MC shank DIN 345 N 118° steam discharge 4xD for steel <850 N/mm² and cast iron.
Applications
- Automotive steel mild steel (<120 HB <400 N/mm²)
- Structural steel inset steel (<200 HB <700 N/mm²)
- Carbon steel (<250 HB <850 N/mm²)
- Alloy steel (<250 HB <850 N/mm²)
- Cast Iron Lamellar (<150 HB >500 N/mm²)
- Cast Iron Lamellar (>150<300 HB >500<1000 N/mm²)
- Structural steel inset steel (<200 HB <700 N/mm²)
- Carbon steel (<250 HB <850 N/mm²)
- Alloy steel (<250 HB <850 N/mm²)
- Cast Iron Lamellar (<150 HB >500 N/mm²)
- Cast Iron Lamellar (>150<300 HB >500<1000 N/mm²)
Technical specifications
Attributes
| Drilling diameter | 12.2 mm |
|---|---|
| Total length | 182 mm |
| Length of cut | 101 mm |
| Taper shank | CM1 |
| Din standard | DIN 345 |
| Ratio of diameter to length of drill hole | 4xD |
| Body material | HSS |
| Sharpening | Standard |
| Tip angle | 118 ° |
| Internal cooling | No |
Show UNSPSC/ECL@SS
£ 39.88 excl. VAT
/ Each
£ 47.86 incl. VAT
Usually arrives within 14 working days
