DOR HSCO PFX DRILL 5.5X260
Metal drills A977
References
dormer:A9775.5X260
rubix:1066016
ean:7320760148754

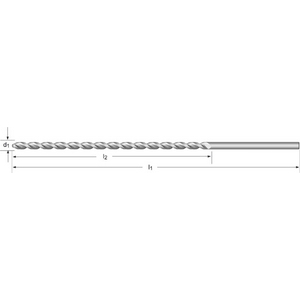

Technical specifications
| Drilling diameter | 5.5 mm |
|---|---|
| Total length | 260 mm |
| Length of cut | 180 mm |
Product details : DOR HSCO PFX DRILL 5.5X260
HSS-E Extra long spiral drill with cylindrical shaft DIN 1869/2 PFX 130° uncoated 15xD for steel <1620 N/mm ².
Applications
• Carbon steel (<250 HB <850 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
• alloy steel hardened and tempered steel (> 350 HB >1200<1620 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
• alloy steel hardened and tempered steel (> 350 HB >1200<1620 N/mm²)
Technical specifications
Attributes
| Drilling diameter | 5.5 mm |
|---|---|
| Total length | 260 mm |
| Length of cut | 180 mm |
| Din standard | DIN 1869/2 |
| Ratio of diameter to length of drill hole | 15xD |
| Tip angle | 130 ° |
| Internal cooling | No |
| Tail diameter | 5.5 mm |
Show UNSPSC/ECL@SS
£ 39.50 excl. VAT
/ Each
£ 47.40 incl. VAT
Usually arrives within 14 working days
