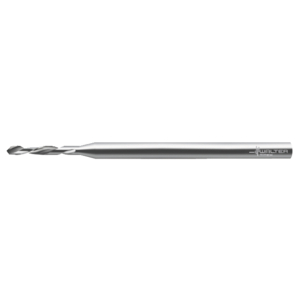

TITEX A3153-0.77 MICRO DRILLS HSS 5063016
Micro Drill
References
walter titex:A3153-0.77
rubix:356A7966
manufacturer :5063016
ean:4031132045733
Technical specifications
| Drilling diameter | 0.77 mm |
|---|---|
| Total length | 25 mm |
| Length of cut | 4.1 mm |
Product details : TITEX A3153-0.77 MICRO DRILLS HSS 5063016
ALTIUS
Applications
Drilling (Through Hole);Blind Hole;Stack Drilling
Technical specifications
Attributes
| Drilling diameter | 0.77 mm |
|---|---|
| Total length | 25 mm |
| Length of cut | 4.1 mm |
| Din standard | DIN 1899 |
| Coating | Uncoated |
| Tolerance | 0,0/0,004 mm |
| Direction of cutting | Left |
| Machining material | Steel;Stainless Steel;Cast Iron;Non-Ferrous Metal;Special Alloy;Others |
| Body material | HSS-E |
| Tip angle | 118 ° |
| Internal cooling | Yes |
| Tail diameter | 1 mm |
Show UNSPSC/ECL@SS
£ 6.70 excl. VAT
/ Each
£ 8.04 incl. VAT
Usually arrives within 14 working days
