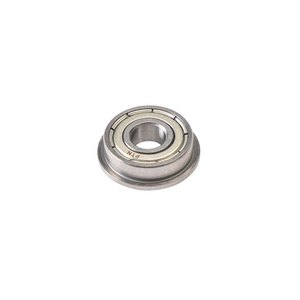

Miniature ball bearing PTN F689-2Z, Outer diameter: 17 mm | Width: 5 mm | Inner diameter: 9 mm
Miniature Deep Groove Ball Bearing
References
ptn:F689-2Z
rubix:294A9835
manufacturer :897989
ean:3660338513329
Technical specifications
| Inner diameter | 9 mm |
|---|---|
| Outer diameter | 17 mm |
| Width | 5 mm |
Product details : PTN F689ZZ DEEP GROOVE BALL BEARINGS

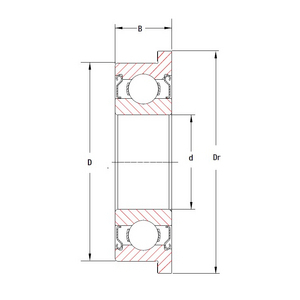

Flanged outer ring, Through hardened round rolling elements with point surface contact
Non-separable races
Low friction torque
Low noise/vibration
Various design types: 2RS sealed, ZZ shield, open
Non-separable races
Low friction torque
Low noise/vibration
Various design types: 2RS sealed, ZZ shield, open
Strengths
Point surface contact provides high speed capabilities
Popular - simple design, not expensive
Versatile - wide range of applications
High radial load carrying ability
Tolerate some misalignment
Applications
Small to medium size/duty applications
Conveyor rollers
Light duty gearboxes
Light duty wheel bearings
General engineering applications
Technical specifications
Attributes
| Inner diameter | 9 mm |
|---|---|
| Outer diameter | 17 mm |
| Width | 5 mm |
| Sealing | Two metal shields |
| Bearing Clearance | CN |
| Series | Miniature |
| Material | Chrome Steel |
| Cage | Steel |
| Weight | 4.87 g |
| Limit speed | 36000 rpm |
| Total bearing width | 5 mm |
| Basic static load, radial - C0r | 668 N |
| Basic dynamic load, radial - Cr | 1327 N |
Show UNSPSC/ECL@SS
£ 0.35 excl. VAT
/ Each
£ 0.42 incl. VAT
Usually arrives within 14 working days
