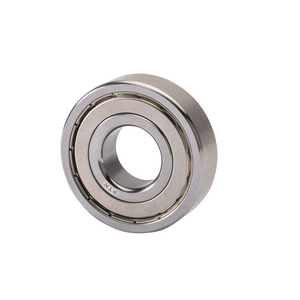

Miniature ball bearing PTN S698-2Z, Outer diameter: 19 mm | Width: 6 mm | Inner diameter: 8 mm
Miniature Deep Groove Ball Bearing
References
ptn:S698-2Z
rubix:294A9918
manufacturer :898091
ean:3660338514340

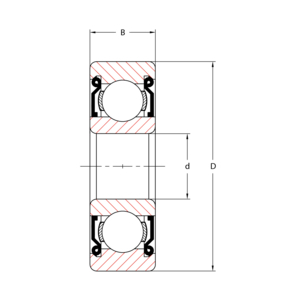

Technical specifications
| Inner diameter | 8 mm |
|---|---|
| Outer diameter | 19 mm |
| Width | 6 mm |
Product details : PTN S698ZZ DEEP GROOVE BALL BEARINGS
Stainless Steel round rolling elements with point surface contact
Non-separable races
Low friction torque
Low noise/vibration
Various design types: 2RS sealed, ZZ shield, open
Non-separable races
Low friction torque
Low noise/vibration
Various design types: 2RS sealed, ZZ shield, open
The PTN range of stainless steel bearings contains a FOOD SAFE GREASE - MOBIL GREASE FM 222or equivalent. NSF registered as H1 classified lubricants
Strengths
Point surface contact provides high speed capabilities
Popular - simple design, not expensive
Versatile - wide range of applications
High radial load carrying ability
Tolerate some misalignment
Applications
Small to medium size/duty applications
Conveyor rollers
Light duty gearboxes
Light duty wheel bearings
General engineering applications
Technical specifications
Attributes
| Inner diameter | 8 mm |
|---|---|
| Outer diameter | 19 mm |
| Width | 6 mm |
| Sealing | Two metal shields |
| Bearing Clearance | CN |
| Series | Miniature |
| Material | Stainless Steel |
| Cage | Steel |
| Weight | 7.3 g |
| Limit speed | 28000 rpm |
| Total bearing width | 6 mm |
| Basic static load, radial - C0r | 820 N |
| Basic dynamic load, radial - Cr | 2020 N |
Show UNSPSC/ECL@SS
£ 0.52 excl. VAT
/ Each
£ 0.62 incl. VAT
Usually arrives within 14 working days
