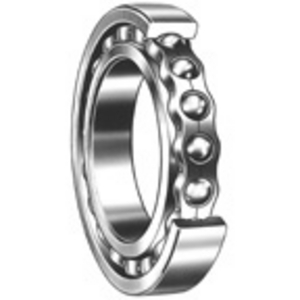

TIMKEN 626-C3 DEEP GROOVE BALL BEARING

Miniature ball bearing Timken 626C3, Outer diameter: 19 mm | Width: 6 mm | Inner diameter: 6 mm

Miniature deep groove ball bearings Timken

See technical information
References
Timken:626C3
Rubix:396A1439
EAN:0053893772646
brand logo
Technical specifications
Inner diameter6 mm
Outer diameter19 mm
Width6 mm
See all Specifications

Product details : TIMKEN 626-C3 DEEP GROOVE BALL BEARING

Miniature single-row deep groove ball bearings, main dimensions according to DIN 625-1, bearing clearance C3
Miniature single-row deep groove ball bearings, main dimensions according to DIN 625-1, bearing clearance C3

Technical specifications

Attributes
Inner diameter6 mm
Outer diameter19 mm
Width6 mm
Sealingopen
Bearing Clearancec3
Series6000 (miniatur/extra-klein)
Materialsteel
Weight7 g
Precisionp0 (iso 492)
Limit speed45000 rpm
Lubricationopen design (rp-rostschutz on all bearing surfaces); end user selects lubricant type and quantity depending on the application.
Borediameter d = 6 mm (bore)
Basic static load, radial - C0r890 N
Basic dynamic load, radial - Cr2300 N
Show UNSPSC/ECL@SS
£ 23.00 excl. VAT
/ 10 pieces
£ 27.60 incl. VAT
  • Usually arrives within 14 working days
