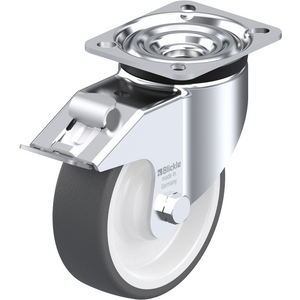

BLICKLE 125MMSWVLBRKCASTOR LK-POTH 125K-1-FI
Pressed steel swivel castor, Heavy duty design, with brake system 'stop-fix' Heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with steel wheel centre
References
blickle:LK-POTH 125KA-1-FI
rubix:156A5724
manufacturer :614800
ean:4047526614805
Technical specifications
| Load capacity | 350 kg |
|---|---|
| Wheel diameter | 125 mm |
| Wheel width | 40 mm |
Product details : BLICKLE 125MMSWVLBRKCASTOR LK-POTH 125K-1-FI
Bracket: LK series
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin (from wheel Ø 125x50 mm)
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: SE series
- tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour black
- wheel centre: thick-walled pressed steel, with tubular steel hub, lacquered, colour anthracite. wheel Ø 80–125 mm made from high-quality nylon 6, impact resistant, colour black
- chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +60 °C
Technical specifications
Attributes
| Logistic Weight | 1328 g |
|---|---|
| Load capacity | 350 kg |
| Wheel diameter | 125 mm |
| Wheel width | 40 mm |
| Wheel housing/rim material | Polyamide |
| Running sole/tire material | Polyurethane |
| Min. temperature | -20 °C |
| Max. temperature | 70 °C |
| Total height | 155 mm |
| Type of bearing | Ball bearing (C) |
| Running sole / tire colour | Grey |
| Shore A Hardness | 94 Shore |
| Plate width | 85 mm |
| Plate length | 100 mm |
| 155 mm | |
| 40 mm |
Show UNSPSC/ECL@SS
£ 50.57 excl. VAT
/ Each
£ 60.68 incl. VAT
Usually arrives within 14 working days
