579441 BLICKLE L-ALST 200K-FI

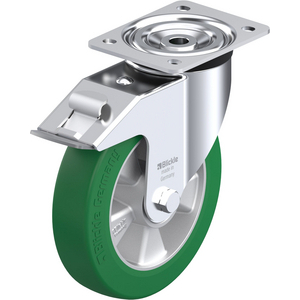

Pressed steel swivel castor, heavy duty design, with top plate fitting, with brake system 'stop-fix' Wheel, with thermoplastic polyurethane tread, with heavy duty nylon wheel centre, with steel thread guard
References
blickle:L-ALST 200K-FI
rubix:267A9658
manufacturer :579441
ean:4047526579449
Technical specifications
| Load capacity | 400 kg |
|---|---|
| Wheel diameter | 200 mm |
| Wheel width | 50 mm |
Product details : 579441 BLICKLE L-ALST 200K-FI
Bracket: LH series
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- heavy fork and top plate
- double ball bearing in the swivel head
- bolted and secured central kingpin, extremely strong
- particularly resistant to shocks and impact due to four specially-shaped, hardened bearing seats
Wheel: POTH series
- tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
- wheel centre: high-quality nylon 6, impact resistant, colour natural white
- very high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
Technical specifications
Attributes
| Logistic Weight | 3800 g |
|---|---|
| Load capacity | 400 kg |
| Wheel diameter | 200 mm |
| Wheel width | 50 mm |
| Wheel housing/rim material | Aluminium |
| Running sole/tire material | Polyurethane |
| Min. temperature | -20 °C |
| Max. temperature | 70 °C |
| Total height | 235 mm |
| Type of bearing | Ball bearing |
| Running sole / tire colour | Green |
| Shore A Hardness | 75 Shore |
| Plate width | 110 mm |
| Plate length | 140 mm |
| 235 mm | |
| 50 mm |
Show UNSPSC/ECL@SS
£ 135.93 excl. VAT
/ Each
£ 163.12 incl. VAT
Usually arrives within 14 working days
