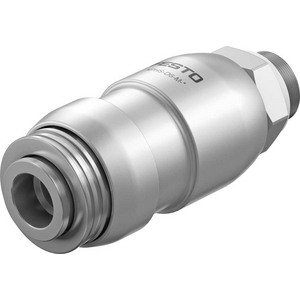

FESTO 8059277 COUPLING SOCKET NPHS-D6-M-G12
Quick Coupling Socket
References
festo:NPHS-D6-M-G12
rubix:263A6008
ean:4052568290221
Technical specifications
| Connection 1 | g1/2 |
|---|---|
| Material | nickel-plated brass (housing);anodised aluminium (sliding sleeve);nickel-plated brass (releasing sleeve) |
| Standard | rohs compliant |
Product details : FESTO 8059277 COUPLING SOCKET NPHS-D6-M-G12
Strengths
Combination of coupling and hand slide valve
Exhaust the air on the plug side without releasing the coupling
Can be used as an on-off valve
Exhaust the air on the plug side without releasing the coupling
Can be used as an on-off valve
Applications
Drive Trunnions
Technical specifications
Attributes
| Connection 1 | g1/2 |
|---|---|
| Material | nickel-plated brass (housing);anodised aluminium (sliding sleeve);nickel-plated brass (releasing sleeve) |
| Standard | rohs compliant |
| Metric passage diameter | 30.8 mm |
| Max. temperature | 80 °C |
| Min. temperature | -20 °C |
| Min. service pressure | -0.95 bar |
| Max. service pressure | 20 bar |
Show UNSPSC/ECL@SS
£ 42.36 excl. VAT
/ Each
£ 50.83 incl. VAT
Delivery usually within ( 2 ) days
