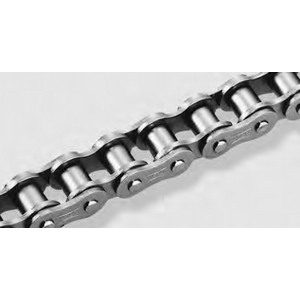

TSUBAKI 0804000352 RS35-NP-1 CONNECTING LINK
RS35-NP-1 Tsubaki ANSI connecting link
References
tsubaki:RS35NP 1 CL
rubix:267A0222
manufacturer :0804000352
ean:8718472029062
Technical specifications
| Chain | ANSI NP Chain |
|---|---|
| Chain pitch | 9.525 mm |
Product details : TSUBAKI 0804000352 RS35-NP-1 CONNECTING LINK
ANSI NP Chain is a Tsubaki ANSI G7 chain that has been plated with Nickel. NP chain has a light corrosion resistance and an attractive appearance. NP chain is suitable for outdoor conditions exposed to water. There is a 15% reduction in Maximum Allowable Load compared to the corresponding ANSI G7 chain, so please take this into account when making your chain selection. The working temperature range is: -10°C to +60°C.
Technical specifications
Attributes
| Logistic Weight | 4 g |
|---|---|
| Chain | ANSI NP Chain |
| Chain pitch | 9.525 mm |
| Weight | 4 g |
| Roller diameter | 5.08 mm |
| Pin length | 13.5 mm |
| Material | Nickel-Plated |
| Type | Roller Chain |
| Chain pin diameter | 4.78 mm |
Show UNSPSC/ECL@SS
£ 3.35 excl. VAT
/ Each
£ 4.02 incl. VAT
Usually arrives within 14 working days
