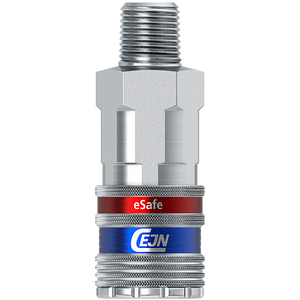

CEJN 103202452 COUPLING 1/4IN NPT MALE NBR - ESAFE
Series 320 eSafe Quick Coupling
References
cejn:103202452
rubix:201A5976
ean:07391390285652
Technical specifications
| Connection 1 | 1/4 |
|---|---|
| Material | Zinc-plated steel, brass |
| Standard | CEJN Original, Eurostandard 7.4 mm |
Product details : CEJN 103202452 COUPLING 1/4IN NPT MALE NBR - ESAFE
eSafe Series 320 coupling is an easy-to-handle high performing coupling with a long service life. eSafe is a one hand operated safety coupling that vents before disconnection eliminating the risk of hose whip. Male threads on the couplings and nipples feature pre-applied thread sealant. The couplings have a smaller outside dimension than comparable designs. Full automatic operation ensures easy handling. eSafe complies with ISO Standard 4414.
Technical specifications
Attributes
| Connection 1 | 1/4 |
|---|---|
| Material | Zinc-plated steel, brass |
| Standard | CEJN Original, Eurostandard 7.4 mm |
| Metric passage diameter | 7.6 mm |
| Max. temperature | 100 °C |
| Min. temperature | -20 °C |
| Max. service pressure | 16 bar |
Show UNSPSC/ECL@SS
£ 26.53 excl. VAT
/ Each
£ 31.84 incl. VAT
Usually arrives within 14 working days
