SNR UKF319H BEARING UNIT

SNR - Bearing Unit - UKF.305H

References

SNR:UKF319H

Rubix:206A1838

EAN:3413529544417

Inner diameter	85 mm
Width	66 mm
Fixation centre-to-centre distance	228 mm

grey cast housing, radial insert ball bearing with adapter sleeve,seal with slinger

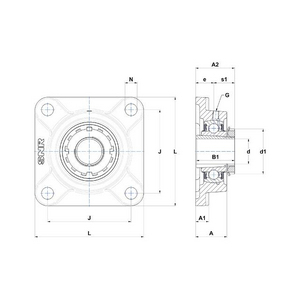

Square flange bearing unit with 4 mounting holes, re-lubricatable, insert with tapered bore and clamping sleeve H23XX.

Attributes

Logistic Weight	21600 g
Inner diameter	85 mm
Width	66 mm
Fixation centre-to-centre distance	228 mm
Material	gray cast iron
Length	290 mm
Series	ukf300
Number of holes	4
Basic static load, radial - C0r	122000 N
Basic dynamic load, radial - Cr	156000 N
Outer diameter	200 mm
Weight	21.48 kg
	290 mm

Show UNSPSC/ECL@SS

£ 385.06 ^{excl. VAT}

/ Each

£ 462.07 ^{incl. VAT}
