Self-aligning ball bearing SNR 3214AC3, Outer diameter: 125 mm | Width: 39.7 mm | Inner diameter: 70 mm
SNR Double-row Self-aligning ball bearing
References
snr:3214AC3
rubix:204A6693
ean:3413520096403
Technical specifications
| Inner diameter | 70 mm |
|---|---|
| Outer diameter | 125 mm |
| Width | 39.7 mm |

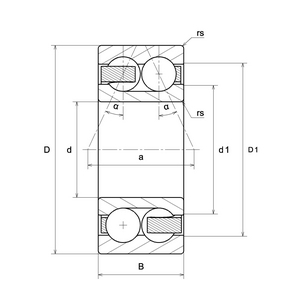

Product details : SNR 3214AC3 ANGULAR CONTACT BALL BEARING
Double-row Angular contact ball bearing with polyamide cage
Angular contact ball bearing, double-row, main dimensions acc. to DIN 628-3, cage made of polyamide, bearing play C3, without groove
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 132x132x48 mm |
|---|---|
| Logistic Weight | 1803 g |
| Inner diameter | 70 mm |
| Outer diameter | 125 mm |
| Width | 39.7 mm |
| Sealing | Open |
| Bearing Clearance | C3 |
| Series | 3200 |
| Material | Steel |
| Reference speed | 4600 rpm |
| Limit speed | 5100 rpm |
| Basic dynamic load, radial - Cr | 81500 N |
| Basic static load, radial - C0r | 76300 N |
Show UNSPSC/ECL@SS
£ 94.65 excl. VAT
/ Each
£ 113.58 incl. VAT
Usually arrives within 14 working days
