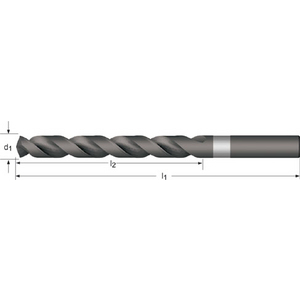

DORMER A10814.0 JOBBER DRILL 14.00 MM 5968269
Spiral drill HSS A108
References
dormer:A10814.0
rubix:1060049
ean:7320760007853
Technical specifications
| Drilling diameter | 14 mm |
|---|---|
| Total length | 160 mm |
| Length of cut | 108 mm |
Product details : DORMER A10814.0 JOBBER DRILL 14.00 MM 5968269
HSS short spiral drill with cylindrical shaft DIN 338 W 135° steam tempered 4xD for austenitic and ferritic/martensitic stainless steel <1000 N/mm ². Titanium and titanium alloys <900 N/mm².
FORET 14.00 NORMAL QC A108 HSS waist UE=5
Applications
• stainless steel - austenitic (<320 HB <1100 N/mm²)
• stainless steel - Ferritic + Austenitic Martensitic (<300 HB <1000 N/mm²)
• Titanium non-alloyed (<200 HB <700 N/mm²)
• Titanium alloyed (<270 HB <900 N/mm²)
• stainless steel - Ferritic + Austenitic Martensitic (<300 HB <1000 N/mm²)
• Titanium non-alloyed (<200 HB <700 N/mm²)
• Titanium alloyed (<270 HB <900 N/mm²)
Technical specifications
Attributes
| Drilling diameter | 14 mm |
|---|---|
| Total length | 160 mm |
| Length of cut | 108 mm |
| Din standard | din 338 |
| Coating | steam tempered |
| Ratio of diameter to length of drill hole | 4xd |
| Machining material | austenitic and ferritic/martensitic stainless steel. titanium and titanium alloys |
| Sharpening | standard |
| Tip angle | 135 ° |
| Internal cooling | no |
| Tail diameter | 14 mm |
Show UNSPSC/ECL@SS
£ 49.06 excl. VAT
/ Each
£ 58.87 incl. VAT
Usually arrives within 14 working days
