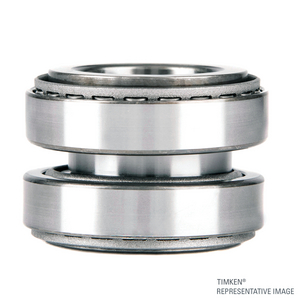

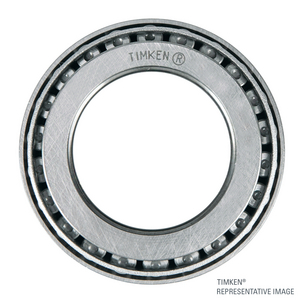

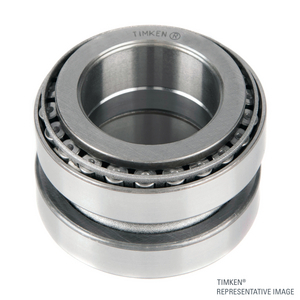

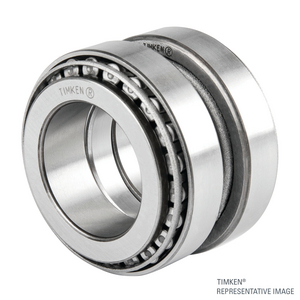

Tapered roller bearing Timken JM714249-90N03, Outer diameter: 120 mm | Inner diameter: 75 mm | Width: 69 mm
Tapered Roller Bearing Cone
References
timken:JM714249-90N03
rubix:397A5351
manufacturer :100074554
ean:0053893084749
Technical specifications
| Inner diameter | 75 mm |
|---|---|
| Outer diameter | 120 mm |
| Width | 69 mm |
Product details : TIMKEN JM714249-90N03 TAPERED ROLLER BEARING
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup. Timken patented the first in 1898 and today offers the world's widest variety in inch and metric sizes. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the inner race assembly and the outer race. It is typically mounted in opposing pairs on a shaft.
This cone will need to be purchased with a matching cup.
This cone will need to be purchased with a matching cup.
Strengths
Single cone. One-piece pressed steel cage retains rollers on the cone and spaces them evenly. Pin type cages also available.
Applications
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 29,5x99,568x99,568 mm |
|---|---|
| Logistic Weight | 838 g |
| Package weight | 2780,5 g |
| Inner diameter | 75 mm |
| Outer diameter | 120 mm |
| Width | 69 mm |
| Bearing Clearance | CN |
| 127 mm | |
| 127 mm |
Show UNSPSC/ECL@SS
£ 334.43 excl. VAT
/ Each
£ 401.32 incl. VAT
Usually arrives within 14 working days
