Tapered roller bearing Timken 3780-90137, Outer diameter: 93.264 mm | Inner diameter: 50.8 mm | Width: 65.024 mm
Tapered Roller Bearing Double Cup Assembly
References
timken:3780-90137
rubix:397A5506
manufacturer :100041641
ean:0053893132532
Technical specifications
| Inner diameter | 50.8 mm |
|---|---|
| Outer diameter | 93.264 mm |
| Width | 65.024 mm |

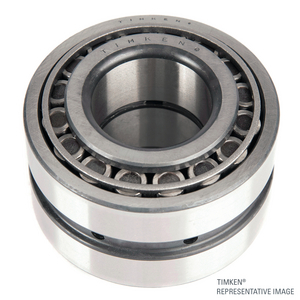

Product details : TIMKEN 3780-90137 TAPERED ROLLER BEARING
The configuration of the TDO provides a wide effective bearing spread, making it ideal for applications in which overturning moments are a significant load component. TDO bearings can be used in fixed positions or allowed to float in the housing bore.
Strengths
Double cup and two single cones, with or without a spacer. When spacers are used, bearing is furnished as a preset, matched assembly. Cup features groove and lubrication holes in the OD. Spacers available with or without lubricant grooves and holes.
Applications
Heavy-duty gear drives; Various industrial configurations
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 65,024x93,218x93,218 mm |
|---|---|
| Logistic Weight | 1669 g |
| Packaged dimensions (D x W x H) | 106,3752x106,3752x68,4276 mm |
| Package weight | 1668,8 g |
| Inner diameter | 50.8 mm |
| Outer diameter | 93.264 mm |
| Width | 65.024 mm |
| Bearing Clearance | CN |
Show UNSPSC/ECL@SS
£ 234.68 excl. VAT
/ Each
£ 281.62 incl. VAT
Usually arrives within 14 working days
