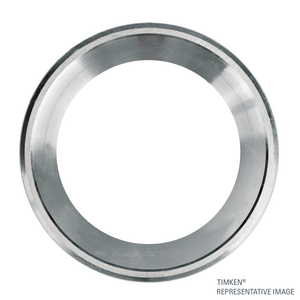

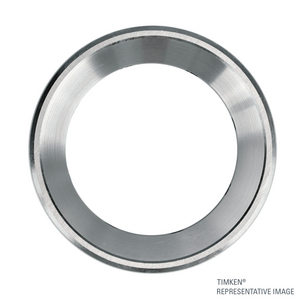

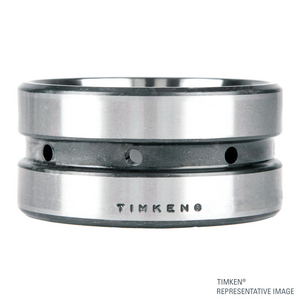

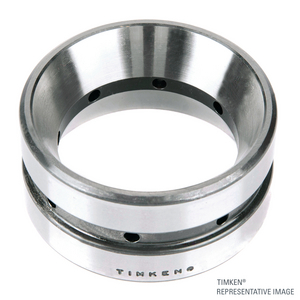

Tapered roller bearing Timken 82932D, Outer diameter: 236.538 mm
Tapered Roller Bearing Double Cup
References
timken:82932D
rubix:397A7741
manufacturer :100033023
ean:0053893415895
Technical specifications
| Outer diameter | 236.538 mm |
|---|---|
| Bearing Clearance | cn |
Product details : TIMKEN 82932D-20081 TAPERED ROLLER BEARING DOUBLE CUP
The configuration of the TDO provides a wide effective bearing spread, making it ideal for applications in which overturning moments are a significant load component. TDO bearings can be used in fixed positions or allowed to float in the housing bore.
Strengths
Double cup and two single cones, with or without a spacer. When spacers are used, bearing is furnished as a preset, matched assembly. Cup features groove and lubrication holes in the OD. Spacers available with or without lubricant grooves and holes.
Applications
Heavy-duty gear drives; Various industrial configurations
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 106,363x236,538x236,538 mm |
|---|---|
| Logistic Weight | 7060 g |
| Packaged dimensions (D x W x H) | 114,3x260,35x260,35 mm |
| Package weight | 7059,7 g |
| Outer diameter | 236.538 mm |
| Bearing Clearance | cn |
Show UNSPSC/ECL@SS
£ 1,467.22 excl. VAT
/ Each
£ 1,760.66 incl. VAT
Usually arrives within 14 working days
