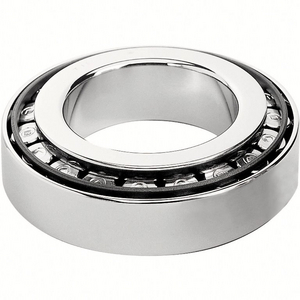

Tapered roller bearing Timken JW5549/JW5510, Outer diameter: 115 mm | Inner diameter: 55 mm | Width: 34 mm
Tapered Roller Bearing
References
timken:JW5549/JW5510
rubix:100A2731
ean:0053893652962
Technical specifications
| Inner diameter | 55 mm |
|---|---|
| Outer diameter | 115 mm |
| Width | 34 mm |
Product details : TIMKEN JW5549-99403 TAPERED ROLLER BEARING
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup. Timken patented the first in 1898 and today offers the world's widest variety in inch and metric sizes. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the inner race assembly and the outer race. It is typically mounted in opposing pairs on a shaft.
Strengths
Single cone and cup. One-piece pressed steel cage retains rollers on the cone and spaces them evenly. Pin type cages also available
Applications
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Technical specifications
Attributes
| Logistic Weight | 1563 g |
|---|---|
| Packaged dimensions (D x W x H) | 49,022x141,732x141,732 mm |
| Inner diameter | 55 mm |
| Outer diameter | 115 mm |
| Width | 34 mm |
| Series | JW5500 |
| Material | Stamped Steel |
| Cage | Steel |
| Total bearing width | 34 mm |
| Basic static load, radial - C0r | 175000 N |
| Basic dynamic load, radial - Cr | 55800 N |
| 115,062 mm | |
| 115,062 mm |
Show UNSPSC/ECL@SS
£ 78.54 excl. VAT
/ Each
£ 94.25 incl. VAT
Usually arrives within 14 working days
