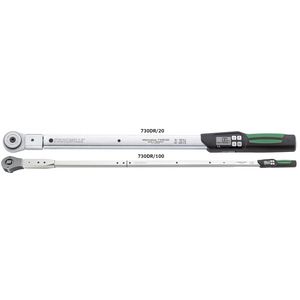

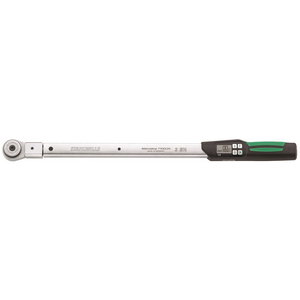

STAHLWILLE 96501840 DIGI TORQUE WRENCH + 3/4 DRIVE RATCHET 40-400NM


730DR Electromechanical torque wrench

References
stahlwille:96501840
rubix:4527329
ean:4018754175666
brand logo
brand logo
Technical specifications
Tightening torque, minimum40 N.m
Tightening torque, maximum400 N.m
Square drive adapter3/4 ''
See all Specifications

Product details : STAHLWILLE 96501840 DIGI TORQUE WRENCH + 3/4 DRIVE RATCHET 40-400NM


Service/Series MANOSKOP® 730D torque wrenches with reversible ratchet insert tool - tactile and acoustic trigger signal - mount for interchangeable insert tools - QuickRelease safety lock - fast setting using convenient keypad - automatic compensation to achieve correct tightening torque even if a changed extension is entered - overload protection by means of acoustic and visual signals - automatic keypad lock prevents inadvertent changes - angle-controlled measurements without a reference arm using Angle Module No 7395-1 - display also works for anticlockwise torque - units of measurement: N·m, ft·lb, in·lb - different tolerance limits can be set for each joint - visual red and green signals in the display confirm the status of the joint - additional security for presets (function mode, trigger or preset value, unit of measurement, tolerance, save, deviating extension) using PIN code - up to 7.500 measurements can be stored - USB interface - automatic notification of the next calibration date - calibration using perfectControl calibrating unit No 7794 or calibration system No 7706 - two-component handle with ergonomically designed green softer layers (resistant to oils, grease, fuels, brake fluids and Skydrol) - with certificate - in sturdy plastic case (sizes 40-100 in steel case) - patent - supplied with two 1.5 V AA batteries. AA/LR6, 1.2 V rechargeable cells may also be used - display deviation value ± 2%, ± 1 digit

Technical specifications


Attributes
Logistics dimensions (L x W x H)65x90x688 mm
Logistic Weight2232 g
Tightening torque, minimum40 N.m
Tightening torque, maximum400 N.m
Square drive adapter3/4 ''
Length738 mm
Number of elements1
Fixation14x18 mm
Standarddin en iso 6789?2
Typetorque wrench
Show UNSPSC/ECL@SS
£ 842.43 excl. VAT
/ Each
£ 1,010.92 incl. VAT
  • Usually arrives within 14 working days
