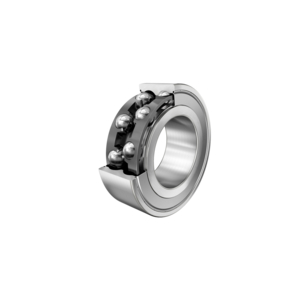

Angular contact ball bearing FAG 3215-B-2Z-TVH, Outer diameter: 130 mm | Inner diameter: 75 mm | Width: 41.3 mm

Angular contact ball bearing

See technical informationSee documents

References

Superseded Ref:3215-2Z
FAG:3215-B-2Z-TVH
Rubix:263A4223
Manufacturer :0392523020000
EAN:4064327116178
brand logo

Technical specifications

Inner diameter75 mm
Outer diameter130 mm
Width41.3 mm
See all Specifications

Documents

Product details : FAG 3215-B-2Z-TVH ANGULAR CONTACT BALL BEARING

Angular contact ball bearing 32..-B-2Z-TVH, double row, shields, plastic cage

Technical specifications

Attributes
Inner diameter75 mm
Outer diameter130 mm
Width41.3 mm
Bearing Clearancecn
Sealingtwo metal shields
Series3215
Materialglass fiber reinforced polyamide (cage)
Cageplastic
Reference speed5300 rpm
Limit speed3900 rpm
Angle25 °
Basic static load, radial - C0r85000 N
Basic dynamic load, radial - Cr88000 N
£ 132.53 excl. VAT
/ Each
£ 159.04 incl. VAT
  • Delivery usually within ( 7 ) days
