Angular contact ball bearing FAG 7305-B-XL-TVP-UB, Outer diameter: 62 mm | Inner diameter: 25 mm | Width: 17 mm

Angular contact ball bearing

See technical information

References

FAG:7305-B-XL-TVP-UB
Rubix:274A7127
Manufacturer :0882842040000
EAN:4054372355547
brand logo

Technical specifications

Inner diameter25 mm
Outer diameter62 mm
Width17 mm
See all Specifications

Product details : FAG 7305-B-XL-TVP-UB ANGULAR CONTACT BALL BEARING

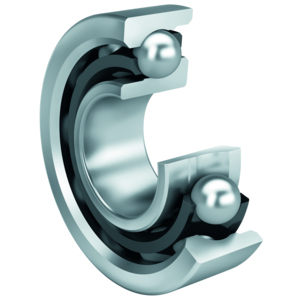

Angular contact ball bearing 73..-B-XL-TVP, single row, X-life, plastic cage

Technical specifications

Attributes
Inner diameter25 mm
Outer diameter62 mm
Width17 mm
Sealingopen
Series73..-b-xl-tvp-ub
Cagepolyamide
Weight0.22 kg
Reference speed9800 rpm
Limit speed15800 rpm
Angle40 °
Precisionp0 (normal / abec 1)
Basic static load, radial - C0r15800 N
Basic dynamic load, radial - Cr30000 N
£ 25.49 excl. VAT
/ Each
£ 30.59 incl. VAT
  • Usually arrives within 14 working days
