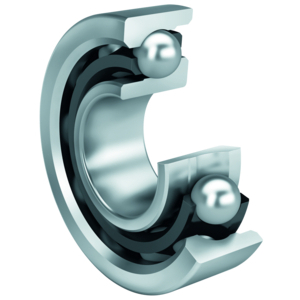

Angular contact ball bearing FAG 7318-B-XL-TVP-UB, Outer diameter: 190 mm | Inner diameter: 90 mm | Width: 43 mm

Angular contact ball bearing

See technical information

References

FAG:7318-B-XL-TVP-UB
Rubix:274A7162
Manufacturer :0882849050000
EAN:4054372618642
brand logo

Technical specifications

Inner diameter90 mm
Outer diameter190 mm
Width43 mm
See all Specifications

Product details : FAG 7318-B-XL-TVP-UB ANGULAR CONTACT BALL BEARING

Angular contact ball bearing 73..-B-XL-TVP, single row, X-life, plastic cage
Angular contact ball bearing 73..-B-XL-TVP, single row, X-life, plastic cage

Technical specifications

Attributes
Inner diameter90 mm
Outer diameter190 mm
Width43 mm
Bearing Clearancecn
Sealingopen
Series73..-b-xl-tvp
Cagepolyamide
Weight4.97 kg
Reference speed3950 rpm
Limit speed4650 rpm
Contact angle40 °
Basic static load, radial - C0r144000 N
Basic dynamic load, radial - Cr171000 N
£ 265.72 excl. VAT
/ Each
£ 318.86 incl. VAT
  • Usually arrives within 14 working days
