TSUBAKI 84100800000-M5 CHAIN SELF-LUB TO DWG CR109.1550-E 5M
BS Lambda Neptune Chain
References
tsubaki:RS08B 1 N.E.P.
rubix:267A1287
manufacturer :4100800000
ean:8718472788761
Technical specifications
| Chain pitch | 12.7 mm |
|---|---|
| Profile | Simplex (1) |
| Chain | 08B-1 |
Product details : TSUBAKI 84100800000-M5 CHAIN SELF-LUB TO DWG CR109.1550-E 5M

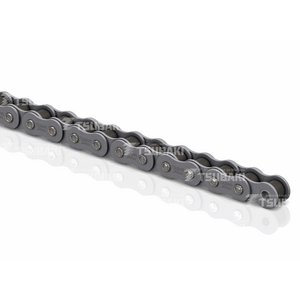

BS Lambda Neptune™ Chain is a Tsubaki BS Lambda chain that has undergone a special surface treatment. The link plates have a special two stage layer applied in order to provide the maximum protection from the operating or environmental conditions. This chain is suitable for use in applications that are subject to akaline cleaning and environments exposed to seawater, acid-rain and other adverse weather conditions. This chain does not contain any chemically hazardous substances such as Hexavalent Chromium, Lead, Cadmium and Mercury as regulated by RoHS.
Strengths
•RF06B-NEP chain has flat-shaped link plates
Connecting links are clip type
Double stake riveting is applied to all other sizes single-strand chain
When a single pitch offset link is used, calculate a 35% reduction of the fatigue strength
Connecting links are clip type
Double stake riveting is applied to all other sizes single-strand chain
When a single pitch offset link is used, calculate a 35% reduction of the fatigue strength
Technical specifications
Attributes
| Chain pitch | 12.7 mm |
|---|---|
| Profile | Simplex (1) |
| Chain | 08B-1 |
| Roller diameter | 8.51 mm |
| Inner width min. | 7.75 mm |
| Chain length | 30500 mm |
| Pin length | 18.4 mm |
| Chain pin diameter | 4.45 mm |
| Weight | 3555 kg |
| Plate type | Clip |
| Plate height | 11.8 mm |
| Plate thickness | 1.6 mm |
Show UNSPSC/ECL@SS
£ 385.67 excl. VAT
/ Each
£ 462.80 incl. VAT
Usually arrives within 14 working days
