DORMER A1473.0 JOBBER DRILL 3.00 MM 7022417
Jobber Drill
References
dormer:A1473.0
rubix:2582031
ean:7320760690888

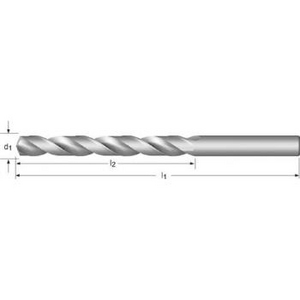

Technical specifications
| Drilling diameter | 3 mm |
|---|---|
| Total length | 61 mm |
| Length of cut | 33 mm |
Product details : DORMER A1473.0 JOBBER DRILL 3.00 MM 7022417
High Speed Cobalt (HSS-E) provides superior hot hardness when drilling
Strengths

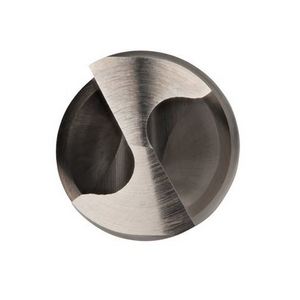

130° special point provides self cantering, low thrust and easier penetration
Back taper facilitates chip evacuation, reducing chipping on the last threads of the taps and also reducing torque when tap reverses
Back taper facilitates chip evacuation, reducing chipping on the last threads of the taps and also reducing torque when tap reverses
Applications
Drilling
Technical specifications
Attributes
| Drilling diameter | 3 mm |
|---|---|
| Total length | 61 mm |
| Length of cut | 33 mm |
| Din standard | DIN 338 |
| Coating | Bright |
| Tolerance | h8 |
| Direction of cutting | Right |
| Ratio of diameter to length of drill hole | 6XD |
| Machining material | Stainless steels, heat-resistant materials, titanium, hard bronze and special alloys |
| Body material | Cobalt variants |
| Tip angle | 130 ° |
| Tail diameter | 3 mm |
Show UNSPSC/ECL@SS
£ 3.62 excl. VAT
/ Each
£ 4.34 incl. VAT
Usually arrives within 14 working days
