DORMER E650M6 DRILL M6 X 1.00 MM 5978342
Machine taps E650
References
dormer:E650M6
rubix:1006389
ean:7320760127575
Technical specifications
| Threading diameter | 6 mm |
|---|---|
| Angle of helix | 30 ° |
| Input | 6.3 |

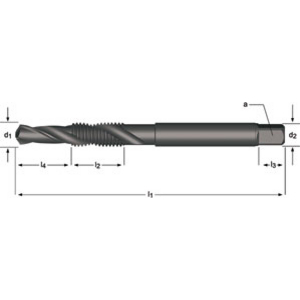

Product details : DORMER E650M6 DRILL M6 X 1.00 MM 5978342
HSS combi-drill/tap voor metric threads steam tempered shape C 30° spiralled 1.5xD continuous holes for general use in steel <850 N/mm². Cast iron Copper and brass. Aluminium alloys Si <0.5% en thermoplasts.
FORET TARAUDEUR M 6X1, 00 E650 HSS
Applications
• Machining steel soft steel (<120 HB <400 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• Cast iron lamellar (> 150<300 HB >500<1000 N/mm²)
• Béta-Brass Bronze (<200 HB <700 N/mm²)
• Alfa-Brass (<200 HB <700 N/mm²)
• Aluminium Magnesium non-alloyed (<100 HB <350 N/mm²)
• Aluminium alloyed Silicon 0.5% (<150 HB <500 N/mm²)
• Plastic-Thermoplastics
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• Cast iron lamellar (> 150<300 HB >500<1000 N/mm²)
• Béta-Brass Bronze (<200 HB <700 N/mm²)
• Alfa-Brass (<200 HB <700 N/mm²)
• Aluminium Magnesium non-alloyed (<100 HB <350 N/mm²)
• Aluminium alloyed Silicon 0.5% (<150 HB <500 N/mm²)
• Plastic-Thermoplastics
Technical specifications
Attributes
| Threading diameter | 6 mm |
|---|---|
| Angle of helix | 30 ° |
| Input | 6.3 |
| Total length | 84 mm |
| Body material | HSS |
| Type | Metric through-bores |
| With cooling spray | No |
| Square drive adapter | 6.3 mm |
| Coating | Steam tempered |
Show UNSPSC/ECL@SS
£ 40.50 excl. VAT
/ Each
£ 48.60 incl. VAT
Usually arrives within 14 working days
