References
Dormer:A1228.0X120
Rubix:1060279
EAN:7320760019252
Technical specifications

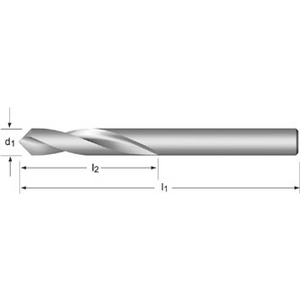

| Drilling diameter | 8 mm |
|---|---|
| Total length | 79 mm |
| Length of cut | 33 mm |
Product details : DORMER A1228.0X120 SPOTTING DRILL 8.00 MM X 120 5968663
HSS NC-centring drill with cylindrical shaft DIN 1897 N 90 °/120 ° uncoated 1xD for non-alloyed steel 850 N/mm ². Red copper and copper alloys. Aluminium-magnesium alloys Si <0.5%.
SPOT DRILL 8X120 QC A122 HSS 120 DEG SHORT UE=10
Applications
• Machining steel soft steel (<120 HB <400 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Copper (<100 HB <350 N/mm²)
• Béta-Brass Bronze (<200 HB <700 N/mm²)
• Alfa-Brass (<200 HB <700 N/mm²)
• Extra-strong bronze (<470 HB <1500 N/mm²)
• Aluminium Magnesium non-alloyed (<100 HB <350 N/mm²)
• Aluminium alloyed Silicon 0.5% (<150 HB <500 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Copper (<100 HB <350 N/mm²)
• Béta-Brass Bronze (<200 HB <700 N/mm²)
• Alfa-Brass (<200 HB <700 N/mm²)
• Extra-strong bronze (<470 HB <1500 N/mm²)
• Aluminium Magnesium non-alloyed (<100 HB <350 N/mm²)
• Aluminium alloyed Silicon 0.5% (<150 HB <500 N/mm²)
Technical specifications
Attributes
| Drilling diameter | 8 mm |
|---|---|
| Total length | 79 mm |
| Length of cut | 33 mm |
| Cutting material | hss |
| Tail | cylindrical shank |
| Tip angle | 120 ° |
| Tolerance | h8 |
| Tail diameter | 8 mm |
| Coating | uncoated |
Show UNSPSC/ECL@SS
£ 251.70 excl. VAT
/ 10 pieces
£ 302.04 incl. VAT
- Usually arrives within 14 working days
