SKF 22348 CC/C3W33 SPHERICAL ROLLER BEARING
Roller bearing Spherical radial Multi row
References
skf:22348 CC/C3W33
rubix:255A6851
manufacturer :35479
ean:7316576654800
Technical specifications
| Inner diameter | 240 mm |
|---|---|
| Outer diameter | 500 mm |
| Width | 155 mm |
Product details : SKF 22348 CC/C3W33 SPHERICAL ROLLER BEARING

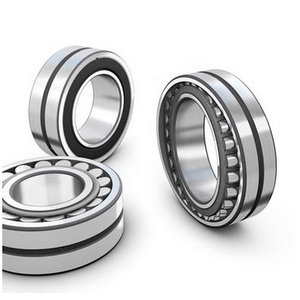

Spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis.
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 155x500x500 mm |
|---|---|
| Logistic Weight | 145100 g |
| Inner diameter | 240 mm |
| Outer diameter | 500 mm |
| Width | 155 mm |
| Bearing Clearance | C3 |
| Series | 223C |
| Reference speed | 950 rpm |
| Limit speed | 1300 rpm |
| Basic static load, radial - C0r | 4000000 N |
| Basic dynamic load, radial - Cr | 2670000 N |
| Sealing | Open |
Show UNSPSC/ECL@SS
£ 5,408.29 excl. VAT
/ Each
£ 6,489.95 incl. VAT
Usually arrives within 14 working days
