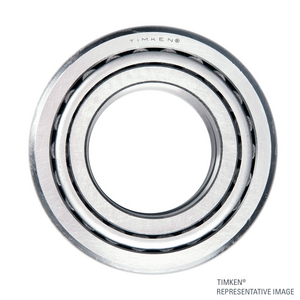

Tapered roller bearing Timken 28680-902A2, Outer diameter: 97.63 mm | Inner diameter: 55.562 mm | Width: 49.276 mm

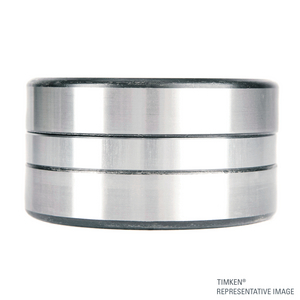

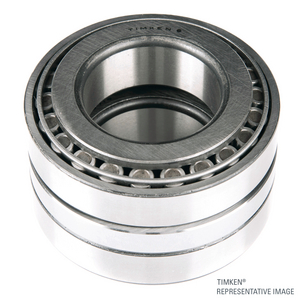

Tapered Roller Bearing 2TS Assembly
References
timken:28680-902A2
rubix:397A4879
manufacturer :100072341
ean:0053893806778
Technical specifications
| Inner diameter | 55.562 mm |
|---|---|
| Outer diameter | 97.63 mm |
| Width | 49.276 mm |
Product details : TIMKEN 28680-902A2 TAPERED ROLLER BEARING
2TS assemblies are comprised of two single-row bearings with an inner and outer ring spacer. In some applications, a shoulder in the bearing housing replaces the outer ring spacer.
Strengths
Steel spacers are used to create Bench End Play (BEP) or Preload (BPL) in the bearing assembly. Available with or without spacers. Spacers preset during manufacture.
Applications
Gear reduction units; Industrial machines
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 49,276x97,536x97,536 mm |
|---|---|
| Logistic Weight | 1556 g |
| Packaged dimensions (D x W x H) | 117,602x117,602x58,674 mm |
| Package weight | 1556,3 g |
| Inner diameter | 55.562 mm |
| Outer diameter | 97.63 mm |
| Width | 49.276 mm |
| Bearing Clearance | cn |
Show UNSPSC/ECL@SS
£ 227.93 excl. VAT
/ Each
£ 273.52 incl. VAT
Usually arrives within 14 working days
