Tapered roller bearing Timken 15520B, Outer diameter: 57.15 mm | Inner diameter: 28.575 mm | Width: 13.495 mm

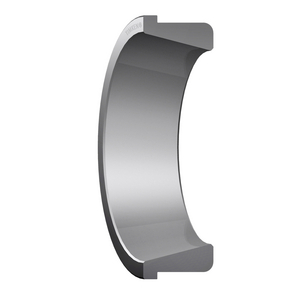

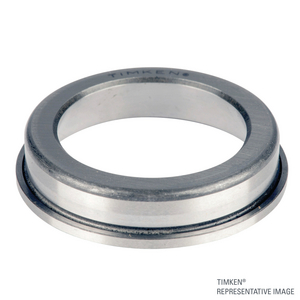

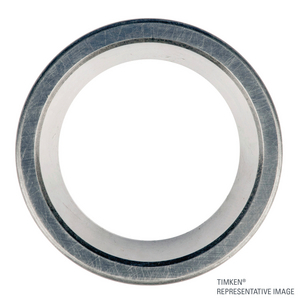

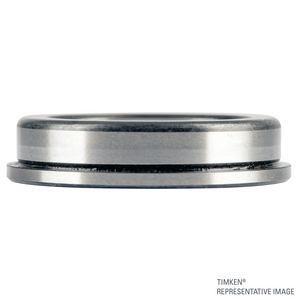

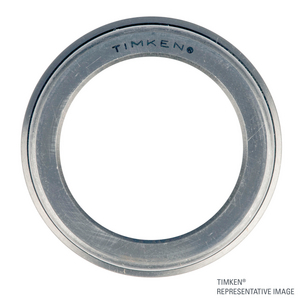

Tapered Roller Bearing Flanged Cup

See technical information

References

Timken:15520B
Rubix:397A7878
Manufacturer :100205147
EAN:0053893189406
brand logo
brand logo
brand logo
brand logo
brand logo
brand logo
brand logo

Technical specifications

Inner diameter28.575 mm
Outer diameter57.15 mm
Width13.495 mm
See all Specifications

Product details : TIMKEN 15520B-20024 TAPERED ROLLER BEARING FLANGED CUP

TSF bearings have flanged cups to facilitate axial location and accurately align seals in through-bored housings.

Strengths

Cup is backed against flange face to allow housing to be through-bored. Accurate alignment of housing bores. Reduced machining costs.

Applications

Machine tool spindles; Gear reduction units; Automotive transaxles; Transmissions

Technical specifications

Attributes
Logistics dimensions (L x W x H)13,495x61,016x61,016 mm
Logistic Weight74 g
Packaged dimensions (D x W x H)71,374x71,374x26,924 mm
Package weight73,9 g
Inner diameter28.575 mm
Outer diameter57.15 mm
Width13.495 mm
Bearing Clearancecn
Weight0.3 kg
Series15500
Total bearing width17.465 mm
Basic static load, radial - C0r50100 N
Basic dynamic load, radial - Cr46000 N
£ 108.57 excl. VAT
/ Each
£ 130.28 incl. VAT
  • Usually arrives within 14 working days
