Tapered roller bearing Timken 3525B, Outer diameter: 87.312 mm | Inner diameter: 42.863 mm | Width: 23.813 mm

Tapered Roller Bearing Flanged Cup

See technical information

References

Timken:3525B
Rubix:131A9789
Manufacturer :100013913
EAN:0053893127996
brand logo
brand logo
brand logo
brand logo
brand logo
brand logo
brand logo

Technical specifications

Inner diameter42.863 mm
Outer diameter87.312 mm
Width23.813 mm
See all Specifications

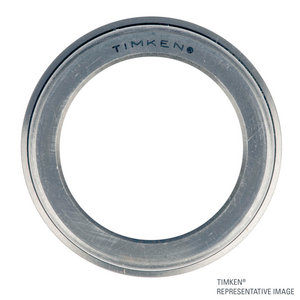

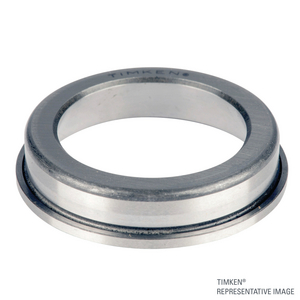

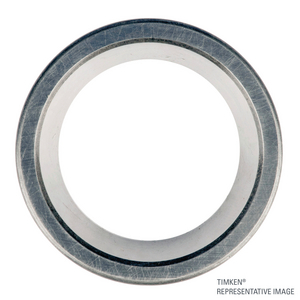

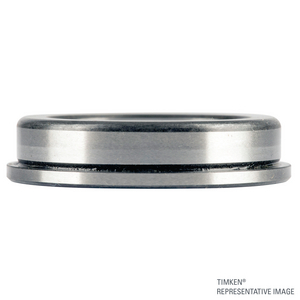

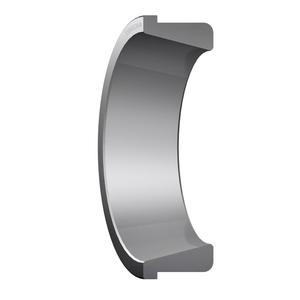

Product details : TIMKEN 3525B-20024 TAPERED ROLLER BEARING FLANGED CUP

TSF bearings have flanged cups to facilitate axial location and accurately align seals in through-bored housings.

Strengths

Cup is backed against flange face to allow housing to be through-bored. Accurate alignment of housing bores. Reduced machining costs.

Applications

Machine tool spindles; Gear reduction units; Automotive transaxles; Transmissions

Technical specifications

Attributes
Logistics dimensions (L x W x H)23,813x91,986x91,986 mm
Logistic Weight303 g
Packaged dimensions (D x W x H)103,632x103,632x34,544 mm
Package weight302,5 g
Inner diameter42.863 mm
Outer diameter87.312 mm
Width23.813 mm
Bearing Clearancecn
Weight0.6 kg
Series3500
Total bearing width30.175 mm
Basic static load, radial - C0r134000 N
Basic dynamic load, radial - Cr29400 N
£ 117.97 excl. VAT
/ Each
£ 141.56 incl. VAT
  • Usually arrives within 14 working days
