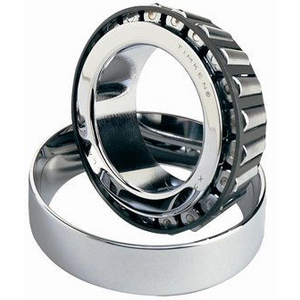

Tapered roller bearing Timken L44649/L44610, Outer diameter: 50.292 mm | Inner diameter: 26.987 mm | Width: 14.224 mm
Tapered Roller Bearing
References
timken:L44649/L44610
rubix:81146332
manufacturer :100109969
ean:0053893657349
Technical specifications
| Inner diameter | 26.987 mm |
|---|---|
| Outer diameter | 50.292 mm |
| Width | 14.224 mm |
Product details : TIMKEN L44649/44610 TAPER ROLLER BEARING 26.988X50.292X10.66
Timken is the recognized world leader in tapered roller bearings with the most extensive offering in the market. This is the basic and the most widely used type of tapered roller bearing. It consists of the inner-ring assembly and the outer ring. It is usually fitted as one of an opposing pair. During equipment assembly, single-row bearings can be “set” to the required clearance (endplay) or preload condition to optimize performance.
Strengths
•Single-row tapered roller bearings have positive roller alignment that ensures true rolling motion and generates a “seating force” that pushes the roller against the cone large rib. This seating force prevents the rollers from skewing off apex, thereby keeping them positively aligned and located against the cone large rib.
Applications
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 59x59x25 mm |
|---|---|
| Logistic Weight | 120 g |
| Packaged dimensions (D x W x H) | 59x59x25 mm |
| Package weight | 120 g |
| Inner diameter | 26.987 mm |
| Outer diameter | 50.292 mm |
| Width | 14.224 mm |
| Bearing Clearance | CN |
| Series | L44600 |
| Material | Stamped Steel (Cage) |
| Cage | Steel |
| Total bearing width | 14.732 mm |
| Basic static load, radial - C0r | 32900 N |
| Basic dynamic load, radial - Cr | 35600 N |
