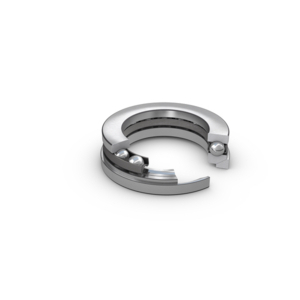

Thrust ball bearing SKF 53317, Inner diameter: 85 mm | Outer diameter: 150 mm | Width: 53.1 mm
Thrust Ball Bearing
References
skf:53317
rubix:102A8501
manufacturer :39917
ean:7316577121417
Technical specifications
| Inner diameter | 85 mm |
|---|---|
| Outer diameter | 150 mm |
| Width | 53.1 mm |
Product details : SKF THRUST BALL BEARING 53317
SKF thrust ball bearings are manufactured as single direction or double direction thrust ball bearings. They are designed to accommodate axial loads only and must not be subjected to any radial load.
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 53,1x150x150 mm |
|---|---|
| Logistic Weight | 3450 g |
| Inner diameter | 85 mm |
| Outer diameter | 150 mm |
| Width | 53.1 mm |
| Series | 533 |
| Material | Bearing steel |
| Cage | Steel |
| Reference speed | 1500 rpm |
| Limit speed | 2000 rpm |
| Basic static load, axial - C0a | 405000 N |
| Basic dynamic load, axial - Ca | 174000 N |
Show UNSPSC/ECL@SS
£ 419.57 excl. VAT
/ Each
£ 503.48 incl. VAT
Usually arrives within 14 working days
