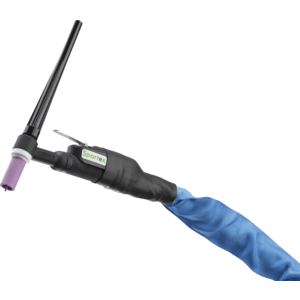

SPARTEX 865688 TORCH TIG18 BLUE-LINE 4 AND 8 M LENGTH

SPARTEX 865688 TORCH TIG18 BLUE-LINE 4 AND 8 M LENGTH

Tig18 blue-line 4m and 8m torch

See technical informationSee documents
References
Spartex:865688
Rubix:278A5565
EAN:3660338199240
TORCH TIG18 BLUE-LINE 4 and 8 M Length m 8
Technical specifications
Length8 m
Operation factor at 40°C320a dc - 270a ac 100%
Coolingwater
See all Specifications
Documents

Product details : SPARTEX 865688 TORCH TIG18 BLUE-LINE 4 AND 8 M LENGTH

Water-cooled. Pressure: 4 bar. Flow: 1.5 L/min .
TSK Connector 50-M12x1 Electrode diameter: 0.5 to 4.0 mm .
Duty cycle factor at 100%: 320A DC – 270A AC .
Equipped with a starter kit ref. 865826 ø 2,4 mm Standard: EN60974-7

Strengths

Tubular handle with a Crouzet® strip switch trigger. Standard torch handle, dual cooling Flexible harness with cotton weaved cover. Power connector ¼ of a turn; gas M12x1; quick water.

Technical specifications

Attributes
Length8 m
Operation factor at 40°C320a dc - 270a ac 100%
Coolingwater
Typesrl 18
Show UNSPSC/ECL@SS
£ 229.50 excl. VAT
/ Each
£ 275.40 incl. VAT
  • Usually arrives within 14 working days

Length

Select variants (2)
