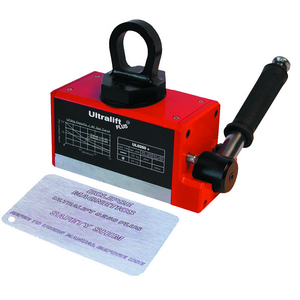

The Ultralift Plus range of manual lifters provides the safest magnetic lifting available. This range of lifters offers an excellent performance to weight ratio. This is achieved using high-energy neodymium magnets, arranged in an efficient magnetic circuit, to give a superb holding force, providing a safe, reliable lift.

Safety shim: The Eclipse Magnetics Ultralift Plus is the only permanently magnetic lifting magnet to be supplied with a ‘Safety Shim’. The ‘Safety Shim’ allows the user to undertake a safety test prior to the lift. This is fast, effective and guarantees a safe lift factor of 3:1.
Safety interlock: Prevents the accidentally switching the magnet off: once under load, the interlock mechanism prevents the operating handle being moved to the off position.
Hand break release: The magnet can easily be released using one hand.

Strengths

Easy to install
Simple one man operation
No power required
Load surface not marked
High performance magnet material providing high performance at a lower weight
Saves space as access is only needed to the top of the load
3 safety mechanisms ensure safe lifting

Technical specifications

Attributes

Safe working load SWL	250 kg
Model	UL0250+
Min. diameter	300 mm
Max diameter	300 mm
Max capacity for round shapes	100 kg

Show UNSPSC/ECL@SS

£ 603.00 ^{excl. VAT}

/ Each

£ 723.60 ^{incl. VAT}

Usually arrives within 14 working days
