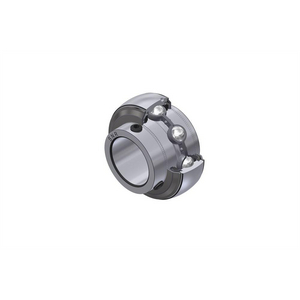

Insert bearing with set screw SNR UC206AGR, Outer diameter: 62 mm | Inner diameter: 30 mm | Width: 39 mm
Zinc-coated insert, spherical outer diameter, fastening by set screw, AGR sealing, lifetime lubrication
See technical informationReferences
SNR:UC206AGR
Rubix:394A6448
EAN:3413521706097
Product details : SNR UC206AGR AGRICULTURAL BEARING
Insert bearings for self-aligning housings are offered with various support options for simplified assembly.
Strengths
-Single-piece JIS and ISO range
-Rigid stainless steel protective covers available for many housings
-The AGR bearing insert symbolizes our commitment to performance and reliability. Developed for the agricultural machinery industry, this insert is ideal for applications where factors such as contamination by dry particles and moisture are of concern and/or high mechanical impacts are expected.
Characteristics: High-performance, maintenance-free grease, robust contact seal, corrosion protection thanks to galvanized surfaces.
-Rigid stainless steel protective covers available for many housings
-The AGR bearing insert symbolizes our commitment to performance and reliability. Developed for the agricultural machinery industry, this insert is ideal for applications where factors such as contamination by dry particles and moisture are of concern and/or high mechanical impacts are expected.
Characteristics: High-performance, maintenance-free grease, robust contact seal, corrosion protection thanks to galvanized surfaces.
Applications
Offering exceptional value for money, the SNR range of self-aligning housings provides solutions for a wide range of applications such as: agricultural machinery, food and beverage processing, material handling, packaging machinery, conveyor systems and many others.
The SNR portfolio provides you with all the products you need at every stage of your production.
The SNR portfolio provides you with all the products you need at every stage of your production.

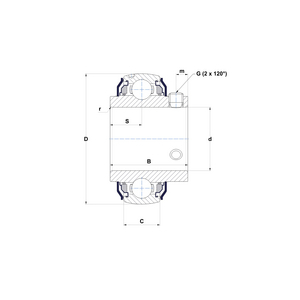

Technical specifications
Attributes
| Inner diameter | 30 mm |
|---|---|
| Outer diameter | 62 mm |
| Width | 39 mm |
| Bearing Clearance | c3 |
| Series | agr |
| Material | hardened bearing steel, zinc-coated |
| Cage | steel |
| Reaming | 30 mm |
| Lubrication Type | grease |
| Total bearing width | 39 mm |
| Basic static load, radial - C0r | 11200 N |
| Basic dynamic load, radial - Cr | 19500 N |
| Lubricant | agriculture agr grease, barium complex / mineral oil, din 51825 kp1/2k-20l |
| Weight | 0.32 kg |
Show UNSPSC/ECL@SS
£ 21.55 excl. VAT
/ Each
£ 25.86 incl. VAT
- Usually arrives within 14 working days
