DORMER A2063.15X8.0 7191812

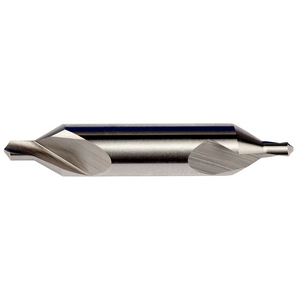

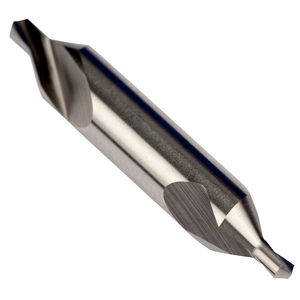

Centre Drill
References
dormer:A2063.15X8.0
rubix:376A0975
manufacturer :7191812
Technical specifications
| Diameter | 8 mm |
|---|---|
| Tip diameter | 3.15 mm |
| Total length | 50 mm |
Product details : DORMER A2063.15X8.0 7191812
Centre drill (combined drill and countersink) with 60° straight conical form, double ended and cylindrical body, 3.15mm drill diameter, a body diameter of 8.00mm and an overall length of 50mm, according to DIN 333A standard to produce standardized centre holes according DIN 332 part 1 form A, cobalt based HSS-E and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron
Strengths
•Bright (uncoated)
High Speed Cobalt Steel Tool Material
DIN 333A - Centre Drill Standards
1xD Usable Tool Depth to Diameter Ratio
60° Countersink Centre Drill
Cylindrical Shank / Straight Shank
Right Hand Rotation / Cutting
Drill Point 118°
High Speed Cobalt Steel Tool Material
DIN 333A - Centre Drill Standards
1xD Usable Tool Depth to Diameter Ratio
60° Countersink Centre Drill
Cylindrical Shank / Straight Shank
Right Hand Rotation / Cutting
Drill Point 118°
Technical specifications
Attributes
| Diameter | 8 mm |
|---|---|
| Tip diameter | 3.15 mm |
| Total length | 50 mm |
| Body material | cobalt variants |
| Shape | cylindrical |
| Bevel angle | 60 ° |
| Diameter (inch) | 0.124 '' |
| Coating | bright |
| Tip angle | 60 ° |
| Drilling diameter | 3.15 mm |
Show UNSPSC/ECL@SS
£ 11.58 excl. VAT
/ Each
£ 13.90 incl. VAT
Usually arrives within 14 working days
