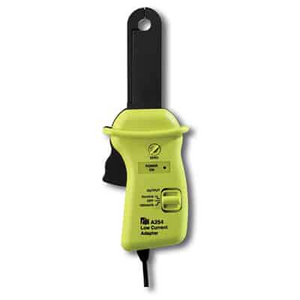

TPI-A254 10MA -40A AC & - 60A DC LOWCURRENT CLAMP ADAPTOR FOR DMM

A254 AC/DC Amp Low Current Probe Adapter. Use This Adapter With TPI brand and most any competitor DMM, clamp-on or oscilloscope having the capability of measuring up to 2000mV AC/DC (2V AC/DC), 10M Ohm input impedance, and equipped with industry standard spaced input jacks 19mm on center.

Measurement Range:
AC Amps: 10mA to 40A
DC Amps: 10mA to 60A

Accuracy:
± (1.5% +20mA) basic accuracy

Adapter Output:
10mV per 1A or
100mV per 1A

General Specifications:
Maximum Conductor Size: 0.35” (9mm)
Lead Length: 48” (1.2m)
Output Connection Type: BNC connector with removable banana plug adapter
